A shake hands Mystery. ( George Richard, Vivinus or De Diettrich?)

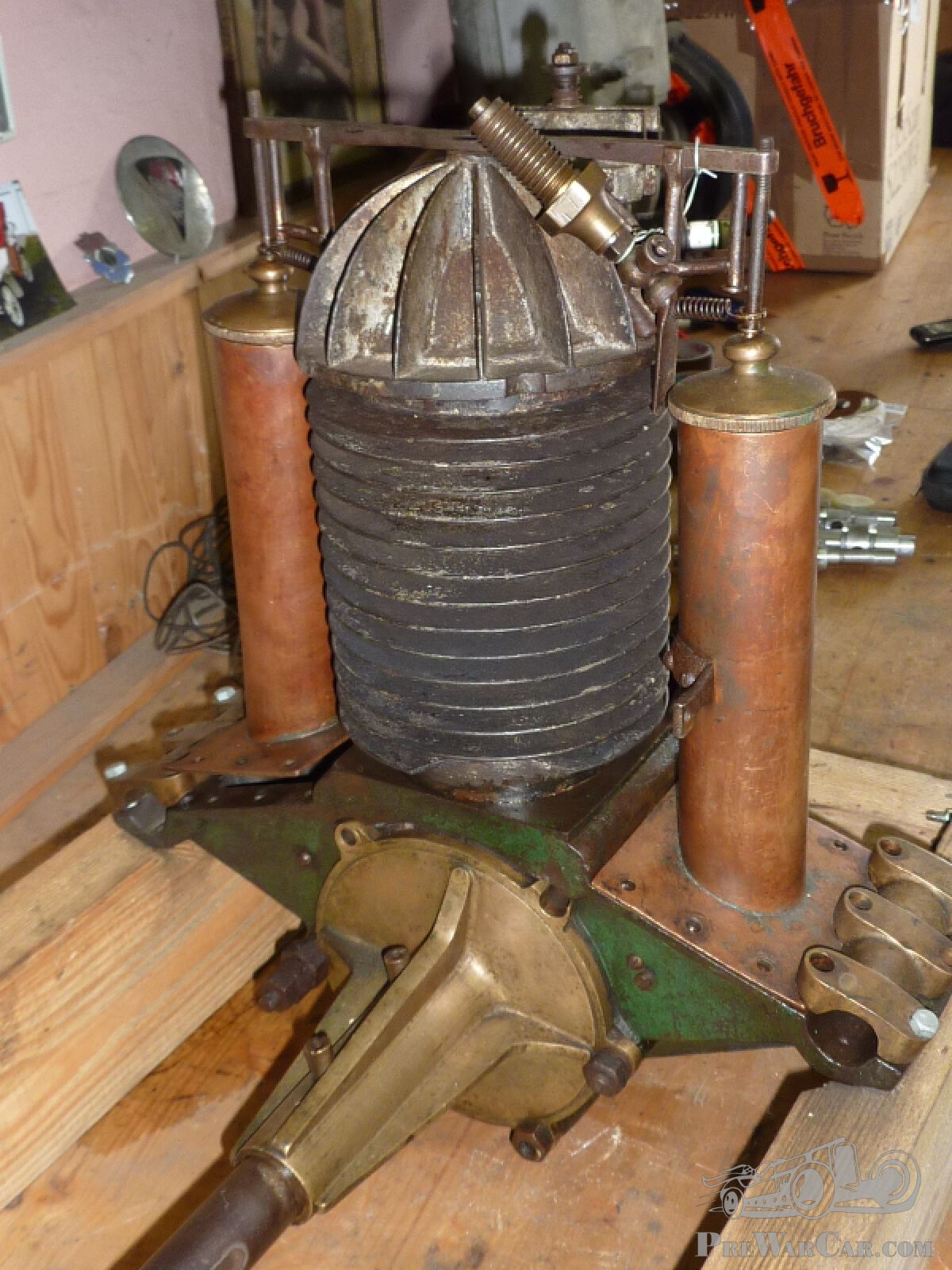

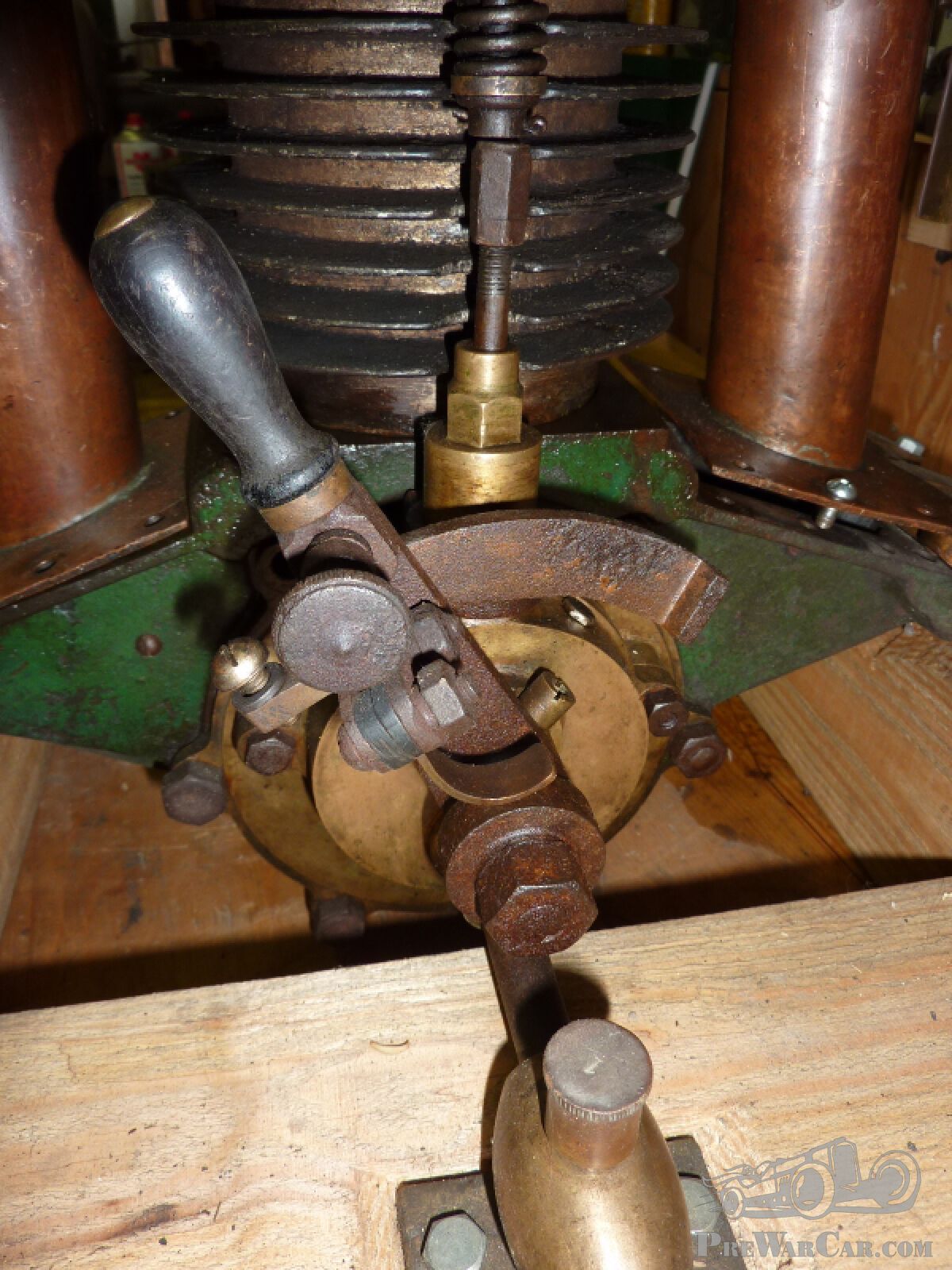

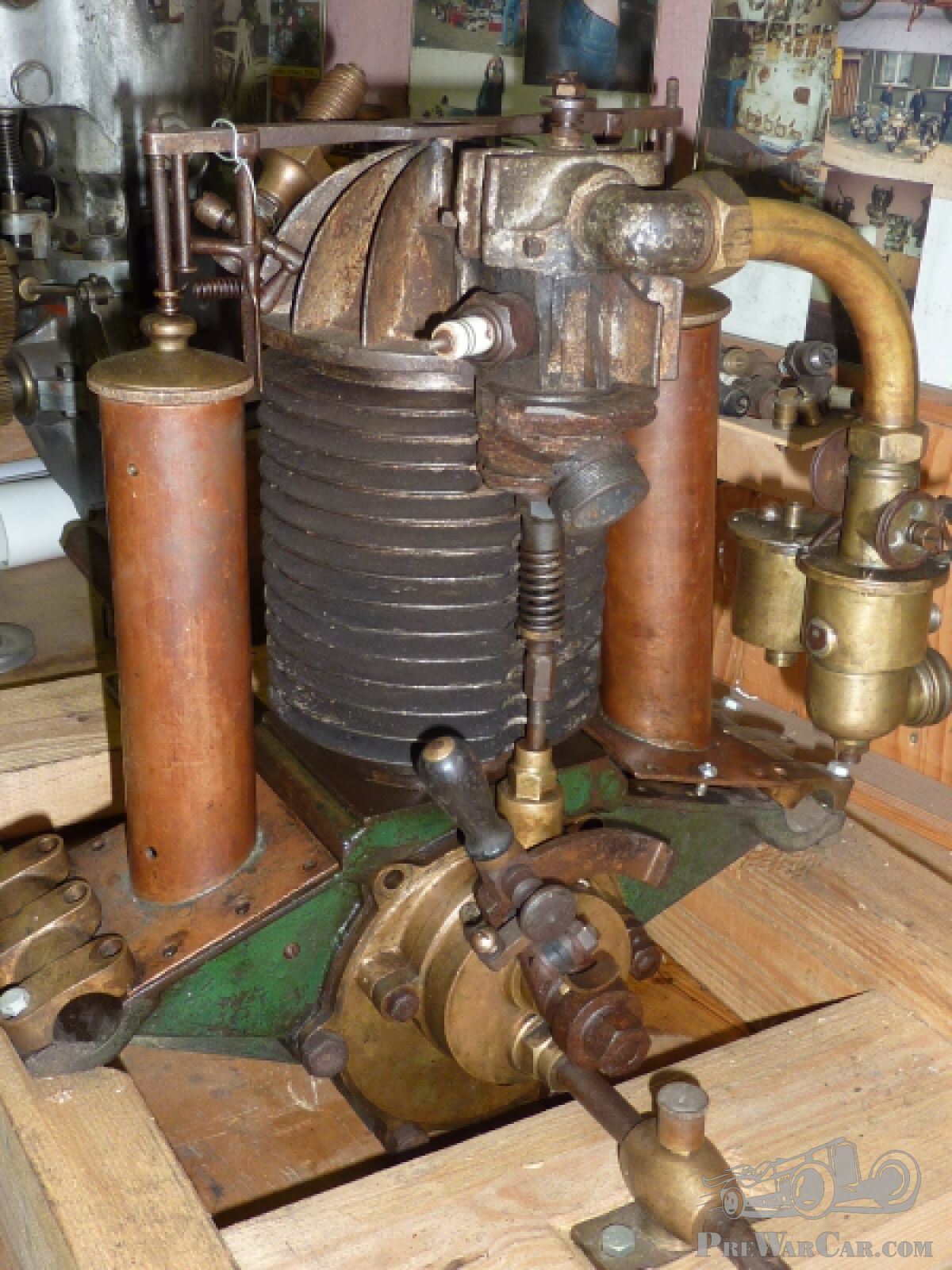

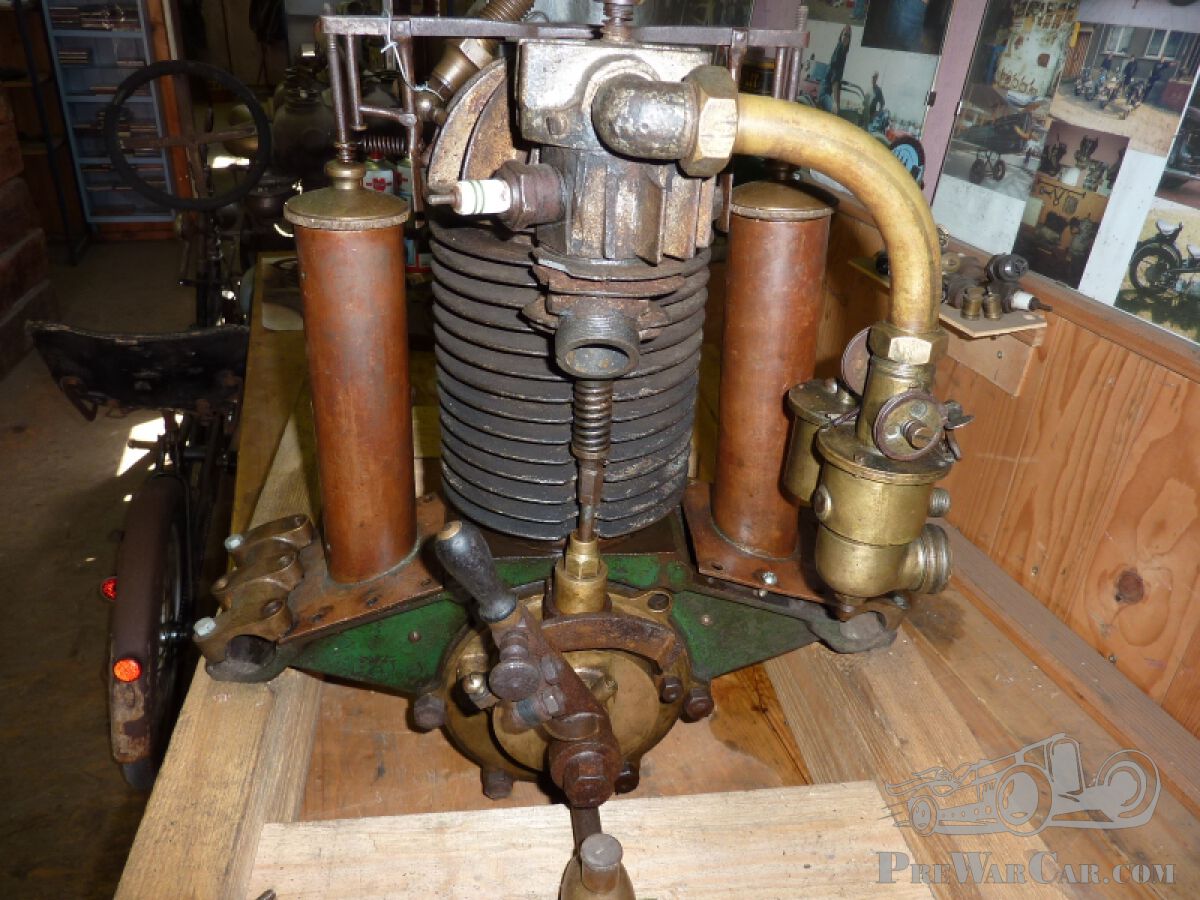

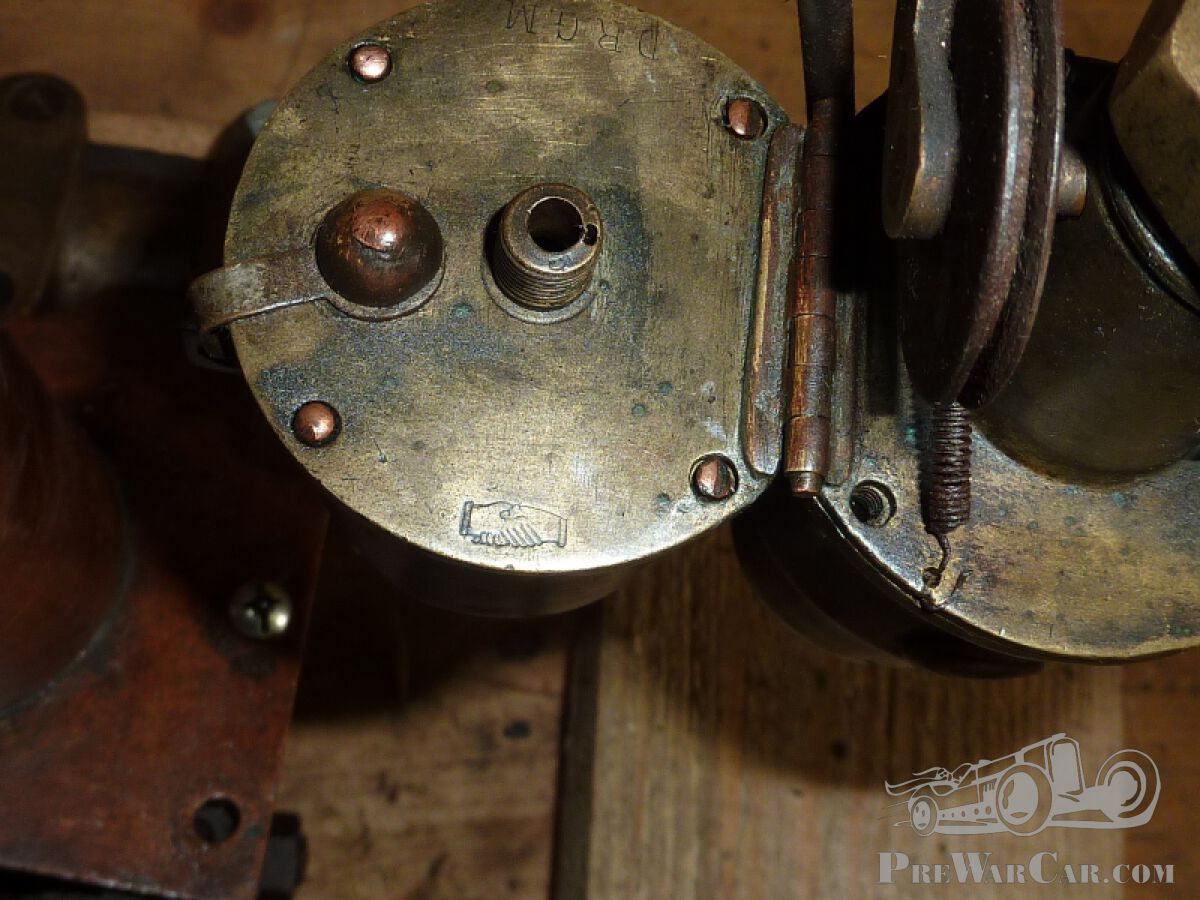

Stefan Feller seems to have a weak spot for mysterious engines as he has already shown us several. Here’s another one that looks very friendly as its carburetor wants to shake hands with us. Some carbs do not like to shake the cyclists hands but perhaps this one? The letters DRGM indicate that it is German made and its dimensions are: total height is 50cm; bore 102 mm. Please also note the unusual circuit breaker with lever. Have you seen this handshake before? Then please tell us and Stefan Feller what it is!
Gepubliceerd:
zondag juni 24th, 2012
Facebook
LinkedIn
Twitter
WhatsApp
Email
Copy
Reacties
Jean-Paul Claesens
11 Februari 2024, 16:22
Onbekend
23 Augustus 2012, 09:28
The Vivinus engine and the New Orleans used crankcase cooling - where these copper cyls are wa snormally a gauze - obviously this was a dirt trap - possible someone has modified these openings to still provide cooling /venting but not to scoop in dust etc. Diagram of same in John Henry Knight - "Light Motor Cars & Voiturettes"
Lees verder
Stefan Feller
27 Juni 2012, 18:39
Hello all, the copper cylinders are a mystery of its own. These are adjustable with a costly mechanism but empty, in my oppinion not original. Some detail say it is home made.The head was clamped in another way. thanks, Stefan
Lees verder
Onbekend
27 Juni 2012, 00:50
Not sure about the handshake, but the motor is likely from a c1901 Vivinus light car from Belgium. They were known in the UK and some other countries as New Orleans. A New Orleans/Vivinus was one of the earliest cars imported into South Australia. Beautiful.
I have photos if interested.
Lees verder
I have photos if interested.
Onbekend
26 Juni 2012, 16:27
Hello sir ,
i have also 3 motors that seems like this one but with not all the parts !!
i think that the motor from Stefan Feller is Georges Richard , or Vivinus or De Dietrich .
I have 2 cars from this model .
i can send you photos fro my motors .
if Stefan Feller wants, he can contact me, Best regards Gilles
Lees verder
i have also 3 motors that seems like this one but with not all the parts !!
i think that the motor from Stefan Feller is Georges Richard , or Vivinus or De Dietrich .
I have 2 cars from this model .
i can send you photos fro my motors .
if Stefan Feller wants, he can contact me, Best regards Gilles
Jean-Paul Claesens
11 Februari 2024, 16:11
I have an 1899 Vivinus. I have an interest in all information.
Regards,
JP
Lees verder
Regards,
JP
Onbekend
25 Juni 2012, 06:54
I just wonder about the purpose of two massive (copper?) columns. Do I see right they help to clamp head to cylinder? This seema odd to me.
Lees verder
Onbekend
25 Juni 2012, 06:38
I suggest it might be a boat engine. The lever on the front looks like it might be for changing the rotation of the engine - from running forwards to running backwards.
Lees verder
Thanks for your answers.
JP
